Master Cabinet Customisation: Why the Kreg 5mm Shelf Pin Jig is an Essential Workshop Tool

When building custom cabinetry, bookcases, or wardrobes, nothing ruins a project faster than misaligned shelf pin holes. A fraction of a millimetre off, and your shelves will rock, tilt, or sit unevenly.

While manual measuring and marking with a combination square can work, it is slow, tedious, and prone to human error. That is where the Kreg Tools Shelf Pin Jig 5mm comes in—a compact, high-precision tool engineered to give you professional, repeatable results every single time.

1. Hardened Steel Guides for Pinpoint Accuracy

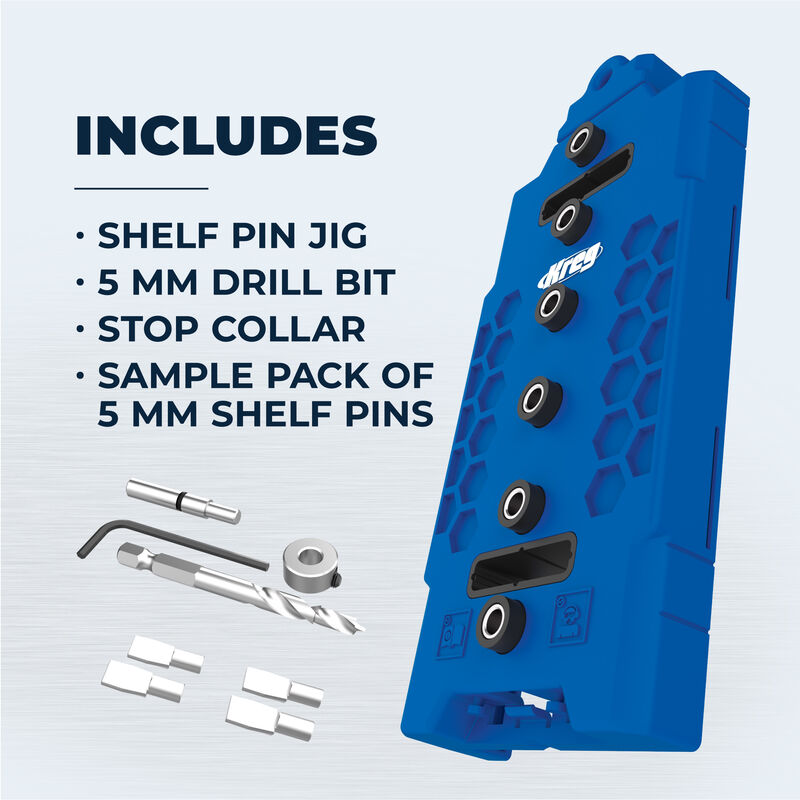

At the heart of the Kreg Shelf Pin Jig are six hardened-steel drill guides. Unlike plastic guide holes that widen and degrade over time as drill flutes rub against them, steel bushings ensure your 5mm brad-point bit enters perfectly perpendicular to the workpiece every time.

• Standard Spacing: Drill guides are set at industry-standard 32 mm center-to-center spacing.

• Clean Cuts: Comes with a ultra-sharp 5mm brad-point drill bit with a depth stop collar to prevent blowouts or drilling through the back of panel work.

2. Removable Fence for Fast, Repeatable Setups

The included fence snaps onto either side of the jig, allowing you to index directly off the edge of your cabinet side panels. Whether you prefer a 25 mm or 50 mm setback from the panel edge, aligning the jig takes only seconds:

1. Snap the fence to your desired setback.

2. Clamp the jig tightly against your workpiece edge.

3. Drill your six holes.

4. Insert the included locating pin into the last hole to index the jig down the line and keep drilling seamless long rows.

3. Modular & Expandable Design

Need to tackle full-height pantry cabinets or floor-to-ceiling wardrobes? Instead of constantly moving a single jig, Kreg designed these tools to connect together. You can easily snap two Shelf Pin Jigs together to double your drilling length and speed up batch production in the workshop.

4. More Than Just Shelf Pins: Concealed Hinges & Drawer Slides

One of the best hidden features of the Kreg Shelf Pin Jig is its built-in utility for frameless cabinet construction:

• Alignment Windows: Integrated alignment marks and clear indicator windows help locate mounting screw locations for European-style concealed hinge plates.

• Drawer Slide Setup: The indexing marks correspond directly to standard 32 mm system layouts, giving you reference points for placing front drawer slide mounting holes.

Key Product Specifications

Feature	Specification
Drill Bit Diameter	5 mm (Brad-Point with Stop Collar)
Hole Spacing	Standard 32 mm System
Bushing Material	Hardened Steel (Lifetime Warranty)
Fence Offset	Adjustable (25 mm / 50 mm)
Compatibility	Snap-connectable with additional Kreg jigs
On-board Storage	Holds bit, stop collar, and locator pin

Final Verdict

Whether you are retrofitting adjustable shelving into existing furniture or building custom flat-pack cabinetry from scratch, the Kreg 5mm Shelf Pin Jig pays for itself on its very first project in saved time and eliminated mistakes.
